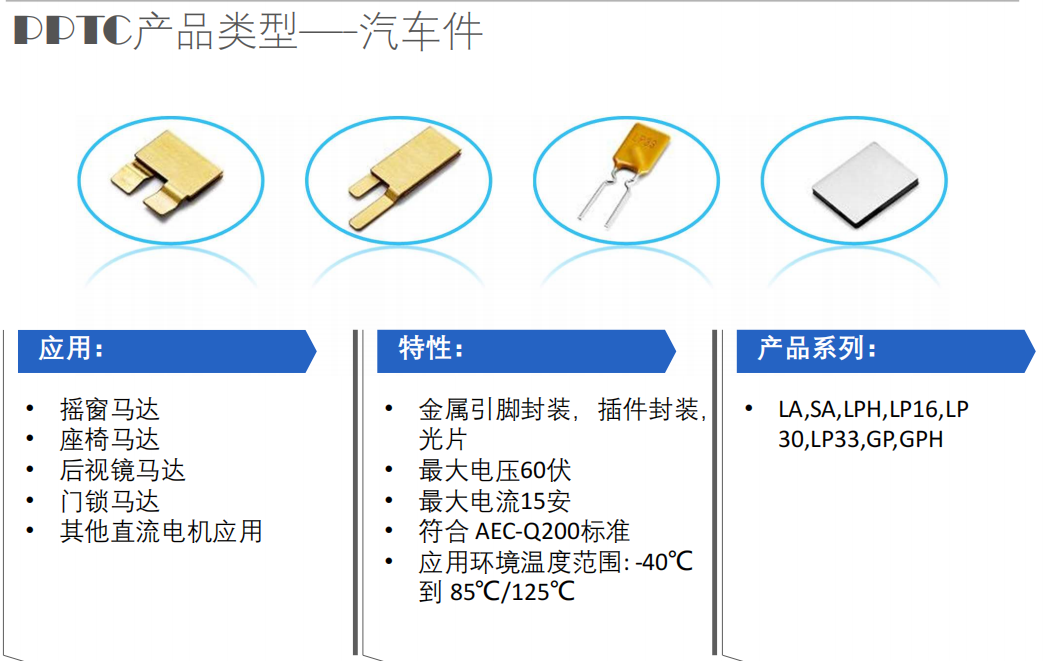

PPTC特点: 电阻低   过流保护  过温度保护  可重复使用

Features：It is applicable to reflow soldering. Both standardized LP-NSM (1206mils), LP-MSM (1812mils) series and customized LP-SM (2920mils) series are available,Rated operation voltage is more than 16V, maximum 60V,Rated operation current is between 0.05A and 2.6A,No electromagnetic noise,Operation temperature: -40℃～85℃,Use wave soldering for assembly which applies to automatic mass production.

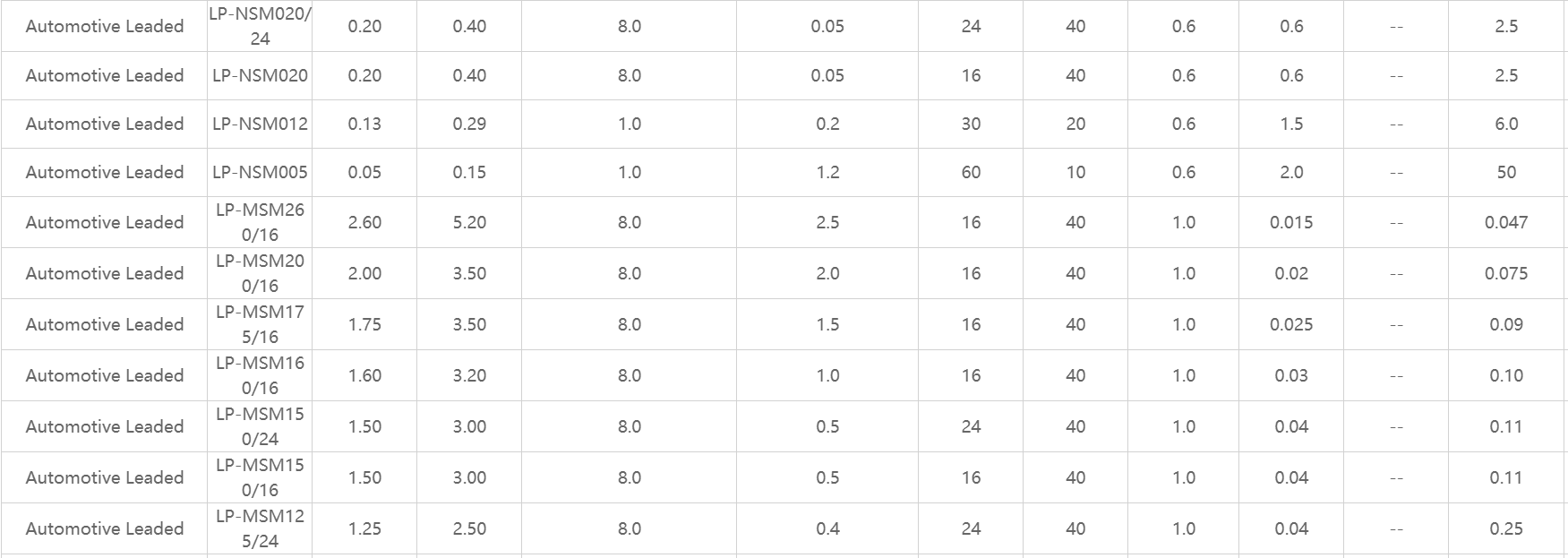

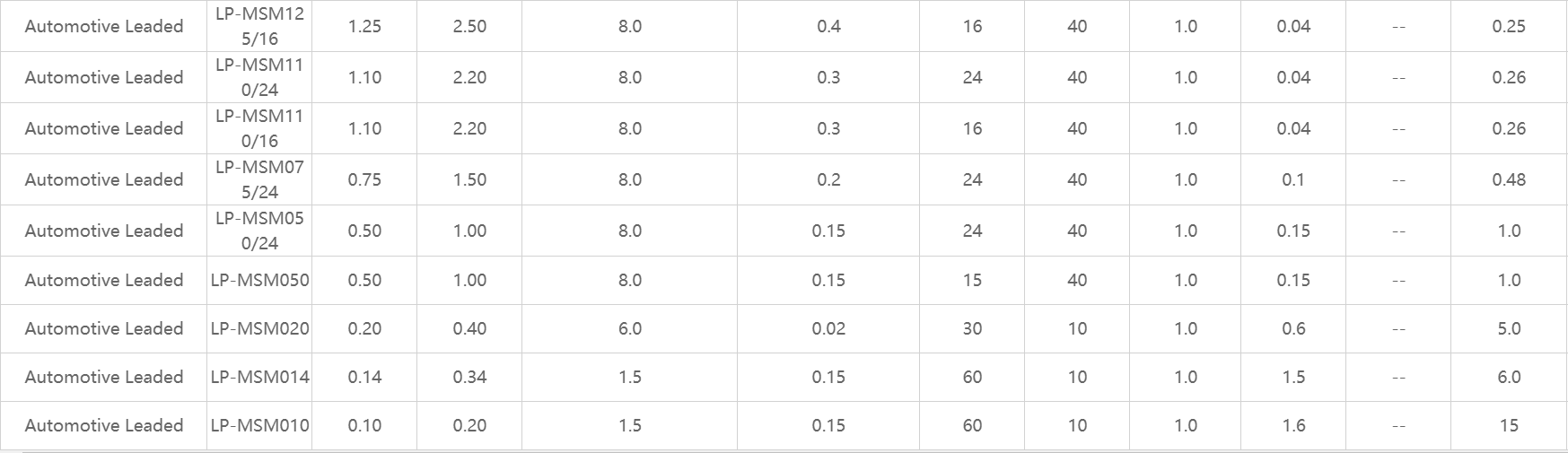

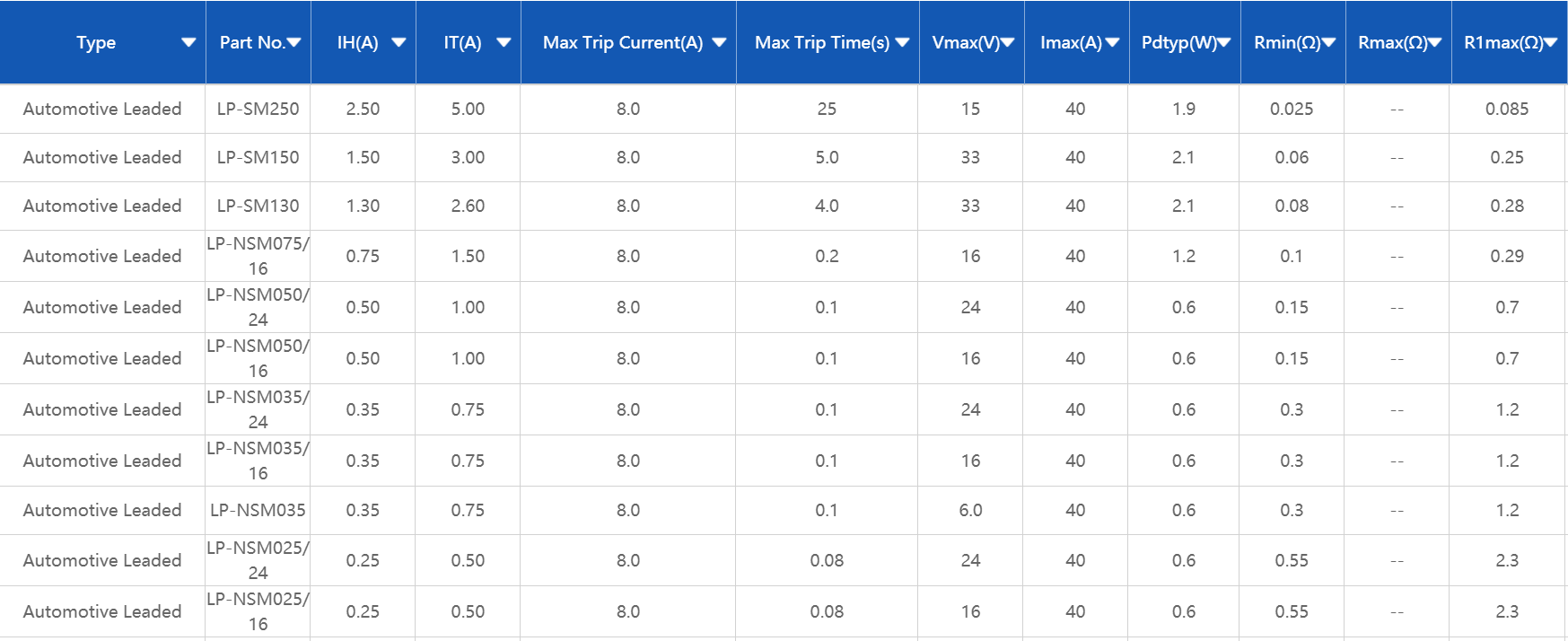

IH=Hold current: maximum current at which the device will not trip at 25℃ still air.

IT=Trip current: minimum current at which the device will always trip at 25℃ still air.

Vmax=Maximum voltage device can withstand without damage at rated current.

Imax=Maximum fault current device can withstand without damage at rated voltage.

Max Time-to-trip=Maximum time to trip(s) at assigned current.

Pd max=Maximum power dissipation: maximum power dissipated by the device when in state air environment.

Rmin=Minimum device resistance at 25℃ prior to tripping.

Rmax=Maximum device resistance at 25℃ prior to tripping.

R1max=Maximum device resistance at 25℃, of device one hour after being tripped the first time.

特点：适用于回流焊。可提供标准化LP-NSM（1206mils）、LP-MSM（1812mils）系列和定制LP-SM（2920mils）系列，额定工作电压大于16V，最大60V，额定工作电流在0.05A至2.6A之间，无电磁噪声，工作温度：-40℃～85℃，采用波峰焊进行组装，适用于自动化批量生产。

IH=保持电流：在25℃静止空气中设备不会跳闸的最大电流。

IT=跳闸电流：装置在25℃静止空气中始终跳闸的最小电流。

Vmax=设备在额定电流下能够承受的最大电压，且不会损坏。

Imax=设备在额定电压下能够承受的最大故障电流，且不会造成损坏。

最大跳闸时间=指定电流下的最大跳闸时间。

Pd max=最大功耗：设备在空气环境中的最大功耗。

Rmin=跳闸前25℃时的最小设备电阻。

Rmax=跳闸前25℃时的最大设备电阻。

R1max=装置首次跳闸一小时后25℃时的最大装置电阻。
