WAYON维安代理商|中低压MOS管 WMB080N10L同步整流管 应用于20W快充

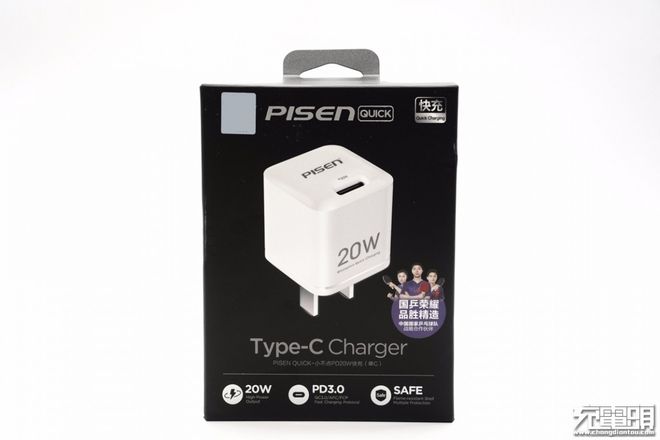

PISEN品胜近期又推出了20W迷你快充充电器，满足消费者对小体积20W充电器的需求。这款产品有单C口和1A1C双口两种款式，经过拆解，发现内置维安WMB080N10LG2同步整流管等器件。

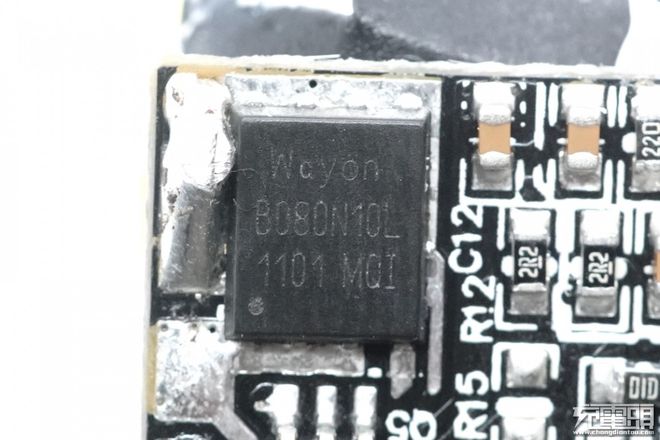

次级同步整流MOS管采用维安WMB080N10LG2，耐压100V，导阻＜10.5mΩ，适用于DC-DC和同步整流应用。

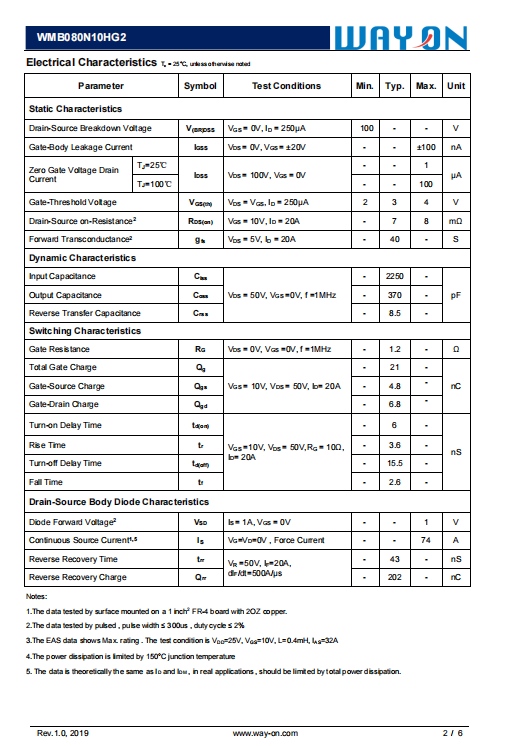

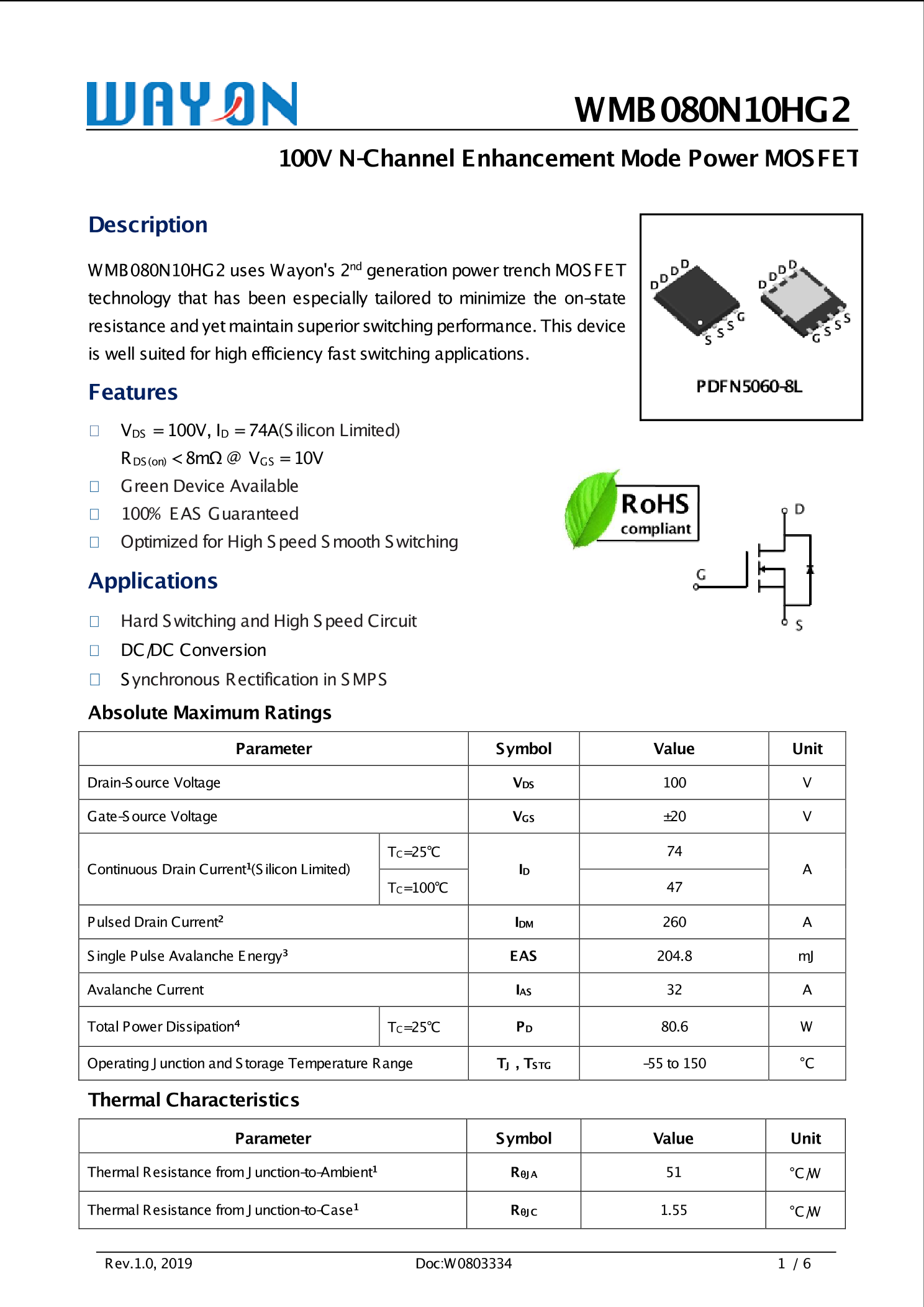

Wayon维安WMB080N10LG2 PDF文档资料：
100V N-Channel Enhancement Mode Power MOSFET
Description
WMB080N10HG2 uses Wayon's 2nd generation power trench MOSFET technology that has been especially tailored to minimize the on-state resistance and yet maintain superior switching performance. This device is well suited for high efficiency fast switching applications.
Features ⚫ VDS = 100V, ID = 74A(Silicon Limited) RDS(on) < 8mΩ @ VGS = 10V ⚫ Green Device Available ⚫ 100% EAS Guaranteed ⚫ Optimized for High Speed Smooth Switching
Applications ⚫ Hard Switching and High Speed Circuit ⚫ DC/DC Conversion ⚫ Synchronous Rectification in SMPS
