Wayon维安代理过压过流器件在安防系统 NVR网络视频录像机上的选型应用
时间:2022-12-11 发布人:京柏微 点击量:
NVR即网络视频录像机,是网络视频监控系统的存储转发部分,其核心功能是视频流的存储与转发。与DVR相比,NVR的功能比较单一,本身不具有模数转换及编码功能,不能独立工作,通常与视频编码器DVS或网络摄像机IPC协同工作,完成视频的录像、存储及转发功能。

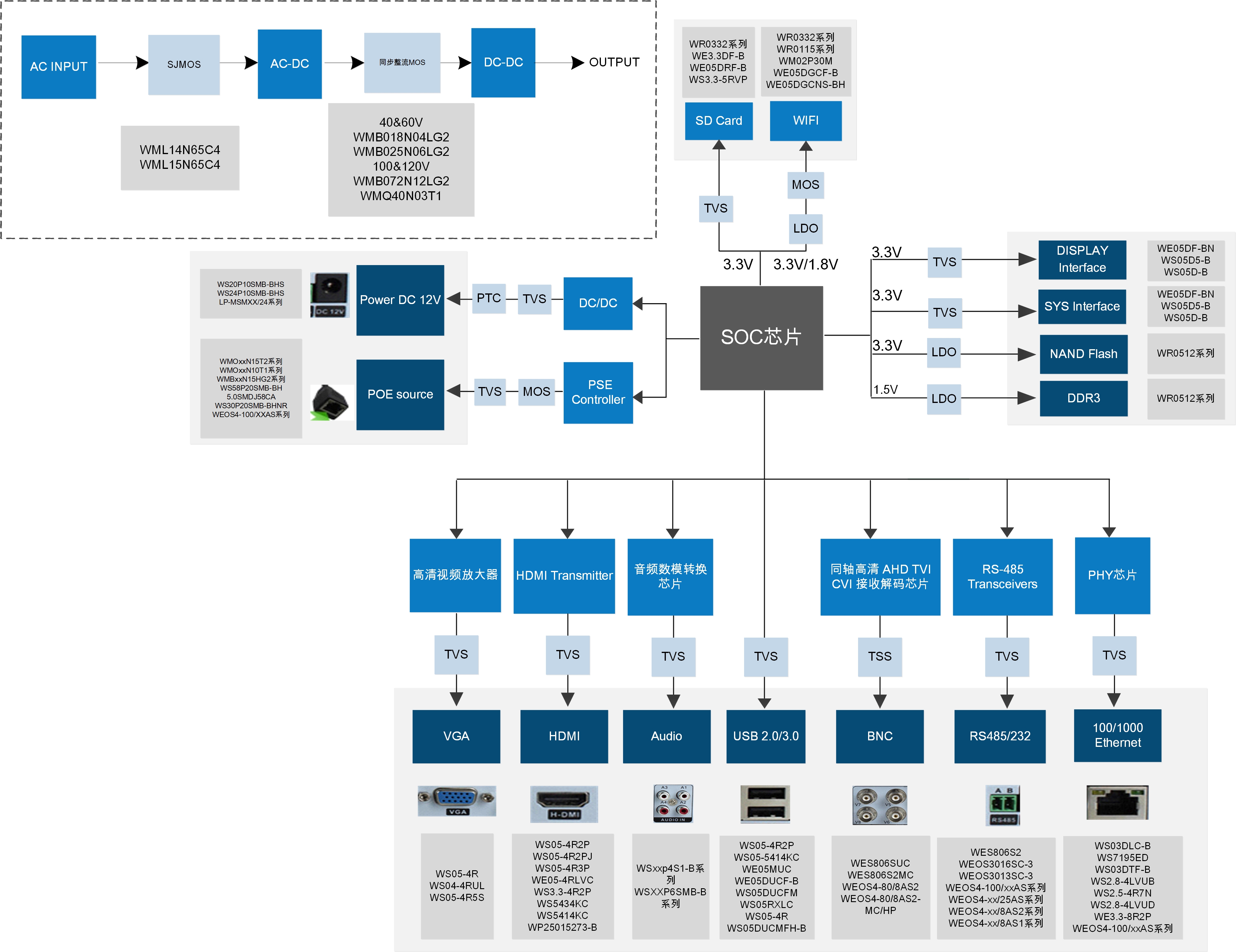

WAYON维安过压过流器件在安防系统 前端摄像设备 后端录像存储设备上选型应用:
选型指导
应用模块 | 类型 | 推荐型号 | 封装 | 备注 |
---|---|---|---|---|
100/1000 Ethernet | TVS/TSS | WS03DLC-B,WS7195ED,WS03DTF-B,WS2.8-4LVUB,WS2.5-4R7N,WS2.8-4LVUD,WE3.3-8R2P,WEOS4-100/25AS,WEOS4-100/400AS | SOD323,DFN1006-2L,DFN3020-10L,DFN3810-9L,SOP-8,SMB | |
AC220V | HV-MOS | WML14N65C4,WML15N65C4 | TO-220F | |
SR control | LV-MOS | WMB018N04LG2,WMB025N06LG2,WMB072N12LG2,WMQ40N03T1 | PDFN5060-8L,DFN3030-8L | |
DC12V | PPTC | LP-MSM110/24,LP-MSM150/24,LP-MSML300/16F | 1812 | |
DC12V | TVS | WS20P10SMB-BHS,WS24P10SMB-BHS | SMB | |
DC12V | SBD | WE3.3DF-B,WE05DRF-B,WS3.3-5RVP | SMB | |
SD | TVS | WE3.3DF-B,WE05DRF-B,WS3.3-5RVP | DFN1006-2L,DFN1616-6L | |
WIFI | TVS,LDO,MOS | WR0332-18FF4R,WR0332-33FF4R WM02P30M,WE05DGCF-B,WE05DGCNS-BH | SOT23,DFN-4 ,DFN1006-2L,DFN0201-2L | |
DISPLAY/SYS Interface | TVS | WE05DF-BN,WS05D5-B,WS05D-B | DFN1006-2L,SOD523,SOD323 | |
DDR3 ,NAND Flash | LDO | WR0512-15A21R,WR0512-33A21R WR0512-15A30R,WR0512-33A30R | SOT89-3 ,SOT23-3 | |
VGA | TVS | WS05-4R,WS04-4RUL,WS05-4R5S | SOT23-6L | |
HDMI | TVS,Loadswitch | WS05-4R2P,WS05-4R2PJ,WS05-4R3P,WE05-4RLVC,WS3.3-4R2P,WS5434KC,WS5414KC,WP25015273-B | DFN2510-10L,SOT-23-6L,SOT-23-5 | |
Audio | TVS | WS07P4S1-B,WS6.0P6SMB-B,WS6.5P6SMB-B | SOD123.SMB | |
USB 2.0/3.0 | TVS | WS05-4R2P,WS05-5414KC,WE05MUC,WE05DUCF-B,WS05DUCFM,WS05RXLC,WS05-4R,WS05DUCMFH-B | DFN2510-10L,SOT-23-6L,DFN1006-2L, SOT143,DFN1006-3L | |
BNC | TSS | WES806SUC,WES806S2MC,WEOS4-80/8AS2,WEOS4-80/8AS2-MC/HP | SMB,SMA | |
RS485/232 | TSS | WES806S2,WEOS3016SC-3,WEOS3013SC-3,WEOS4-100/25AS,WEOS4-80/25AS,,WEOS4-80/8AS2,WEOS4-100/8AS1 | SMC-3,SMB,SMA,SOD123 |
