发力新基建，Wayon维安半导体推出国内16.5mΩ超低内阻超结MOSFET WMJ120N60CM

时间：2022-11-29 发布人：京柏微点击量：

受益于国家对新基建项目的重视，新能源电动汽车充电桩和5G基站建设速度迅猛。应新能源汽车续航里程提升和快速充电的要求，充电桩的功率已高达120KW到180KW。同样，5G领域也很讲求功率的高效性，5G基站单站满载功率近3700W，约为4G基站的2.5~3.5倍，电费亦会随之攀升至3G、4G的4~5倍之大。面对这些用电大户，耗电问题将是5G时代运营商无法回避的问题。降低能耗，提升电源效率，是选择功率半导体器件时的主要考虑因素。目前，功率MOSFET中TO-247封装是充电机、充电桩和基站高功率电源模块应用中最通用的封装形式。针对超低内阻的高压MOS产品需求，在常规TO-247封装不能满足的情况下，电源工程师往往会使用诸如TO-247MAX,、TO-3P(L) 、TO-264、PLUS TO-247等超大体积封装来代替。这种超大封装不仅不通用，且成本较高。顺应趋势，维安经过多年的SJ-MOS技术研发创新，开发出行业内超低导通电阻产品——WMJ120N60CM，采用常规 TO-247封装的600V高压SJ-MOS，导通电阻Rdson低至16.5mΩ，能够有效提升电源功率密度，解决应用痛点。
新基建,Wayon代理商，维安半导体，维安代理商，16.5mΩ超低内阻超结MOSFET，WMJ120N60CM

图1：常规TO-247 封装示意图新基建,Wayon代理商，维安半导体，维安代理商，16.5mΩ超低内阻超结MOSFET，WMJ120N60CM

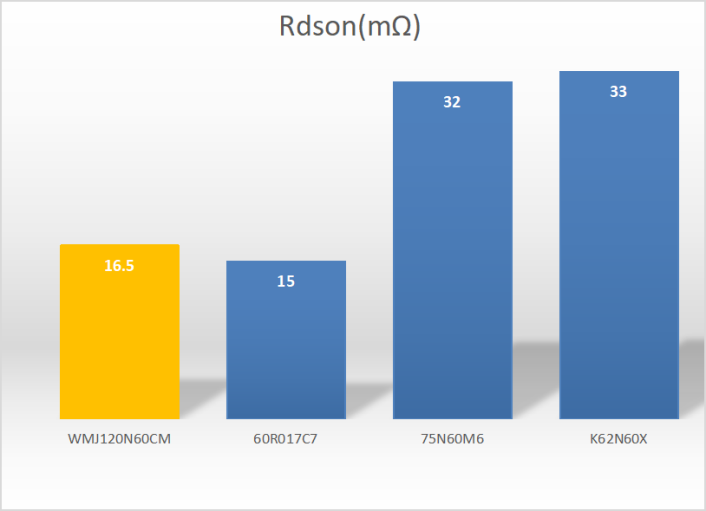

图2：常规TO-247导通电阻Rdson 对比

新基建,Wayon代理商，维安半导体，维安代理商，16.5mΩ超低内阻超结MOSFET，WMJ120N60CM

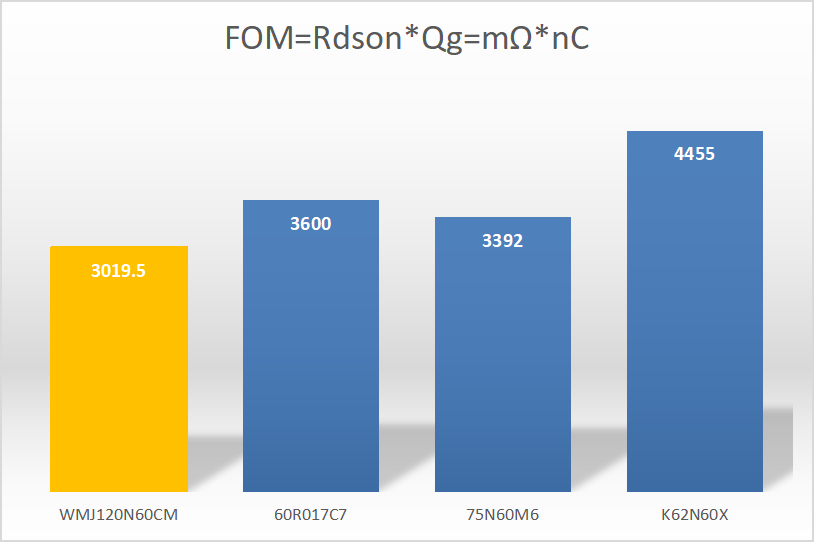

图3：常规TO-247 品质因数FOM对比

在品质因数FOM（Rdson*Qg）方面，WMJ120N60CM达到业界领先水平。

在3.3KW PFC模块电路测试中，WMJ120N60CM和行业某知名厂商的65R019C7效率几乎无差异，甚至比60R019C7高出0.15~0.34%; 对应的输入功耗小了1~4W。

WMJ120N60CM具有业内领先的导通电阻Rdson，且是TO-247通用封装，在有效提升电源功率密度的同时又节省了空间。目前此款产品主要面向高功率电源模块，比如新能源汽车地面充电桩模块电源，通信电源和高功率充电机等行业，在减少成本费用的情况下实现高效，加速新基建全面落地。

Part No.	Package	Configuration	Type	ESD	VDS	Vgs Max	ID at 25℃	VGS(th)	Rds(on)		Ciss	Coss	Crss
					VDS	Vgs Max	ID at 25℃	Typ.	Vgs=10V	Vgs=4.5V	Ciss	Coss	Crss
					V	V	A(Max.)	V	mΩ(Max.)	mΩ(Max.)	pF(Typ.)	pF(Typ.)	pF(Typ.)
12V-100V Trench P Channel Power MOSFET
WM01P75R	DFN2*2-6L	Single	P	NO	-12	±8	-7.5	-0.65	/	26	1260	400	350
WM02P160R	DFN2*2-6L	Single	P	NO	-20	±10	-16	-0.65	/	17	2895	303	280
WMQ55P02T1	PDFN3*3-8L	Single	P	NO	-20	±10	-55	-0.65	/	8.2	3140	603	565
WMS15P02T1	SOP-8L	Single	P	NO	-20	±10	-15	-0.65	/	8.2	3138	602	565
WMQ55P03T1	PDFN3*3-8L	Single	P	NO	-30	±20	-55	-1.5	8.5	12.8	4180	520	435
WMB60P03T1	PDFN5*6-8L	Single	P	NO	-30	±20	-60	-1.5	8.8	14	4320	529	487
WMS16P03T1	SOP-8L	Single	P	NO	-30	±20	-16	-1.5	8.8	13	4180	525	430
WMQ50P03T1	PDFN3*3-8L	Single	P	NO	-30	±20	-50	-1.5	9	14	3958	440	341
WMS14P03T1	SOP-8L	Single	P	NO	-30	±20	-14	-1.5	9.2	14	3448	445	325
WMQ42P03T1	PDFN3*3-8L	Single	P	NO	-30	±20	-42	-1.5	14	22	2500	280	220
WMS09DP03T1	SOP-8L	Dual	P	NO	-30	±20	-9	-1.5	14	22	2500	280	220
WMO50P03T1	TO-252	Single	P	NO	-30	±20	-50	-1.5	14	22	2500	280	220
WMS12P03T1	SOP-8L	Single	P	NO	-30	±20	-11.5	-1.5	15	25	2335	280	219
WM03P115R	DFN2*2-6L	Single	P	NO	-30	±20	-11.5	-1.5	24	34	1510	190	146
WMQ30P03T1	PDFN3*3-8L	Single	P	NO	-30	±20	-30	-1.5	24	35	1405	177	147
WMQ30P04T1	PDFN3*3-8L	Single	P	NO	-40	±20	-30	-1.6	13	20	3597	316	249
WMS13P04T1	SOP-8L	Single	P	NO	-40	±20	-13	-1.6	13	20	3430	292	225
WMO50P04T1	TO-252	Single	P	NO	-40	±20	-50	-1.6	13	20	3320	290	225
WMQ25P06T1	PDFN3*3-8L	Single	P	NO	-60	±20	25	-1.5	28	35	3135	200	121
WMO35P06T1	TO-252	Single	P	NO	-60	±20	-35	-1.5	28	35	3135	200	121
WMO25P06T1	TO-252	Single	P	NO	-60	±20	-25	-1.8	40	55	1098	322	59
WMO13P06T1	TO-252	Single	P	NO	-60	±20	-13	-1.6	90	128	1015	50	35
WMS05P06T1	SOP-8L	Single	P	NO	-60	±20	-4.5	-1.6	90	128	1015	50	35
WMQ12P10T1	PDFN3*3-8L	Single	P	NO	-100	±20	12	-1.7	100	120	3182	296	189
WMO18P10T1	TO-252	Single	P	NO	-100	±20	-18	-1.8	110	135	1050	104	9.5
20V-250V Trench N Channel Power MOSFET
WMR15N02T1	DFN2*2-6L	Single	N	NO	20	±10	15	0.65	/	8.2	2445	426	202
WMR09N02T1	DFN2*2-6L	Single	N	NO	20	±10	9	0.65	/	22	850	140	105
WMQ30N02T1	PDFN3*3-8L	Single	N	NO	20	±10	30	0.65	/	4.5	3850	490	440
WMO90N02T1	TO-252	Single	N	NO	20	±10	90	0.65	/	4.5	3850	490	440
WMO60N02T1	TO-252	Single	N	NO	20	±10	60	0.65	/	6	2280	300	270
WM02DN080C	DFN2*3-6L	Dual	N	YES	20	±12	8	0.62	/	16	730	85	80
WM02DN085C	DFN2*3-6L	Dual	N	YES	20	±12	8.5	0.62	/	10.9	1612	162	140
WM02DN095C	DFN2*3-6L	Dual	N	YES	20	±12	9.5	0.62	/	9.4	1647	170	150
WM02DN110C	DFN2*3-6L	Dual	N	YES	20	±12	11	0.62	/	7.5	1767	184	155
WM02DN560Q	DFN3*3-8L	Dual	N	YES	20	±8	56	0.55	/	5.8	3165	380	325
WMB90N03T1	PDFN5*6-8L	Single	N	NO	30	±20	90	1.5	3	6	3300	505	420
WMK180N03T1	TO-220	Single	N	NO	30	±20	180	1.5	3.2	6	3570	510	431
WMO150N03T1	TO-252	Single	N	NO	30	±20	150	1.5	3.2	6	3570	510	431
WMM180N03T1	TO-263	Single	N	NO	30	±20	180	1.5	3.2	6	3570	510	431
WMQ45N03T1	PDFN3*3-8L	Single	N	YES	30	±20	45	1.5	3.8	5.8	2550	495	271
WMQ80N03T1	PDFN3*3-8L	Single	N	NO	30	±20	80	1.5	4	6	2808	420	297
WMB108N03T1	PDFN5*6-8L	Single	N	NO	30	±20	108	1.5	4	6	3075	400	315
WMS15N03T1	SOP-8L	Single	N	NO	30	±20	15	1.5	4	6	2808	420	297
WMO96N03T1	TO-252	Single	N	NO	30	±20	96	1.5	4	6	3000	410	285
WMR16N03T1	DFN2*2-6L	Single	N	NO	30	±20	16	1.5	5.2	7.2	2390	282	230
WMR15N03T1	DFN2*2-6L	Single	N	NO	30	±20	15	1.8	5.2	8.5	1100	435	57
WMQ40N03T1	PDFN3*3-8L	Single	N	NO	30	±20	40	1.5	5.5	9	1895	267	192
WMB81N03T1	PDFN5*6-8L	Single	N	NO	30	±20	81	1.5	5.5	9	1880	267	185
WMO80N03T1	TO-252	Single	N	NO	30	±20	80	1.5	5.5	9	1860	267	180
WMS13N03T1	SOP-8L	Single	N	NO	30	±20	13	1.5	6	9	1846	267	190
WMK75N03T1	TO-220	Single	N	NO	30	±20	75	1.5	6	9	1895	267	192
WMR14N03T1	DFN2*2-6L	Single	N	NO	30	±20	14	1.5	6.8	10	1650	223	185
WMR13N03T1	DFN2*2-6L	Single	N	NO	30	±20	12.5	0.75	9	12	1035	179	154
WMR12N03T1	DFN2*2-6L	Single	N	NO	30	±20	12	1.5	8	12	1035	179	154
WMQ46N03T1	PDFN3*3-8L	Single	N	NO	30	±20	46	1.5	8.5	13	1105	163	131
WMB58N03T1	PDFN5*6-8L	Single	N	NO	30	±20	58	1.5	8.5	14	1100	163	131
WMO55N03T1	TO-252	Single	N	NO	30	±20	55	1.5	8.5	12.5	1107	163	115
WMR10N03T1	DFN2*2-6L	Single	N	NO	30	±20	10	1.5	12	16.5	896	126	108
WMQ37N03T1	PDFN3*3-8L	Single	N	NO	30	±20	37	1.5	12	16.5	830	126	85
WMQ36DN03T1	PDFN3*3-8L	Dual	N	NO	30	±20	36	1.5	12	16.5	830	126	85
WMB46N03T1	PDFN5*6-8L	Single	N	NO	30	±20	46	1.7	12	16.5	832	125	84
WMS11N03T1	SOP-8L	Single	N	NO	30	±20	11	1.75	12	17	932	128	105
WM03N115A	SOP-8L	Single	N	NO	30	±20	11.5	1.5	12	16	1140	165	110
WMR07N03T1	DFN2*2-6L	Single	N	NO	30	±20	7	1.5	18	30	500	75	51
WMQ28N03T1	PDFN3*3-8L	Single	N	NO	30	±20	28	1.5	18	30	500	75	51
WMS10DN03T1	SOP-8L	Dual	N	NO	30	±20	10	1.5	18	30	500	75	51
WM03N105A	SOP-8L	Single	N	NO	30	±20	10.5	1.5	23	32	500	75	51
WMB116N04T1	PDFN5*6-8L	Single	N	NO	40	±20	116	2	2.5	3.5	5920	690	520
WMO150N04T1	TO-252	Single	N	NO	40	±20	150	1.5	3.5	4.8	5850	648	485
WMK188N04T1	TO-220	Single	N	NO	40	±20	188	2	3.5	4.8	5850	648	485
WMQ55N04T1	PDFN3*3-8L	Single	N	NO	40	±20	55	1.5	6.5	8.8	3310	280	209
WMB70N04T1	PDFN5*6-8L	Single	N	NO	40	±20	70	1.5	6.5	8.5	3260	245	185
WMK80N04T1	TO-220	Single	N	NO	40	±20	80	1.7	7	12	2400	192	160
WMO75N04T1	TO-252	Single	N	NO	40	±20	75	1.5	6.5	8.8	3310	280	209
WMQ50N04T1	PDFN3*3-8L	Single	N	NO	40	±20	50	1.7	7.2	12	2400	192	160
WMB56N04T1	PDFN5*6-8L	Single	N	NO	40	±20	56	1.7	7.2	12	2370	190	162
WMO60N04T1	TO-252	Single	N	NO	40	±20	60	1.7	7.2	12	2400	192	160
WMQ30N04T1	PDFN3*3-8L	Single	N	NO	40	±20	30	1.5	11.5	16.5	1258	106	80
WMB116N06T1	PDFN5*6-8L	Single	N	NO	60	±20	116	1.8	5.2	7	5323	400	325
WMS18N06T1	SOP-8L	Single	N	NO	60	±20	18	1.8	6.5	8.5	5300	320	245
WMO105N06T1	TO-252	Single	N	NO	60	±20	105	1.8	6.5	8.5	5300	400	325
WMO70N06T1	TO-252	Single	N	NO	60	±20	70	3	7.4	/	2610	881	290
WMB75N06T1	PDFN5*6-8L	Single	N	NO	60	±20	75	1.8	8.5	12	3307	201	151
WMS13N06T1	SOP-8L	Single	N	NO	60	±20	13	1.8	8.5	12	3307	201	151
WMO80N06T1	TO-252	Single	N	NO	60	±20	80	3	8.5	/	3200	310	292
WMQ44N06T1	PDFN3*3-8L	Single	N	NO	60	±20	44	1.8	12	15	2750	210	146
WMB52N06T1	PDFN5*6-8L	Single	N	NO	60	±20	52	1.8	12	15	2750	210	146
WMS10N06T1	SOP-8L	Single	N	NO	60	±20	10	1.8	12	15	2600	205	150
WMO40N06T1	TO-252	Single	N	NO	60	±20	40	1.8	21	24	2060	130	98
WMO20N06T1	TO-252	Single	N	NO	60	±20	20	1.8	46	52	927	62	47
WMS05N06T1	SOP-8L	Single	N	NO	60	±20	4.5	1.8	46	52	998	61	45
WMO17N06T1	TO-252	Single	N	NO	60	±20	17	1.8	75	90	600	38.5	28
WMQ35N07T1	PDFN3*3-8L	Single	N	NO	65	±20	35	1.8	21	24	2050	130	98
WMB64N10T1	PDFN5*6-8L	Single	N	NO	100	±20	64	1.8	14	16.7	4500	225	170
WMS11N10T1	SOP-8L	Single	N	NO	100	±20	11	1.8	15	17	4720	228	172
WMS08N10T1	SOP-8L	Single	N	NO	100	±20	8	1.8	24	28	3440	145	110
WMK28N10T1	TO-220	Single	N	NO	100	±20	28	2	47	50	2217	147	98
WMO28N10T1	TO-252	Single	N	NO	100	±20	28	2	47	50	2217	147	98
WMQ12N10T1	PDFN3*3-8L	Single	N	NO	100	±20	12.5	2	65	90	542	45	21
WMO14N10T1	TO-252	Single	N	NO	100	±20	14	2	66	85	560	63	27
WMT05N10T1	SOT-223	Single	N	NO	100	±20	5	2	100	110	1061	55	40
WMK16N10T1	TO-220	Single	N	NO	100	±20	15.8	2	100	110	1100	55	40
WMO15N10T1	TO-252	Single	N	NO	100	±20	14.6	2	100	110	1100	55	40
WMO09N10T1	TO-252	Single	N	NO	100	±20	9	2	160	170	1077	46	32
WMT04N15T1	SOT-223	Single	N	NO	150	±20	4	2	160	/	1130	53	37
WMO15N15T1	TO-252	Single	N	NO	150	±20	15	2	170	/	1130	53	37
WMO09N15T1	TO-252	Single	N	NO	150	±20	8.6	2	325	/	223	23	14
WMO18N20T1	TO-252	Single	N	NO	200	±20	18	2	170	180	2370	95	65
30V-250V SGT N Channel Power MOSFET
WMB017N03LG2	PDFN5*6-8L	Single	N	NO	30	±20	100	1.6	1.7	2.5	3500	1800	240
WMQ023N03LG2	PDFN3*3-8L	Single	N	NO	30	±20	75	1.6	3	4.5	2670	1480	158
WMB023N03LG2	PDFN5*6-8L	Single	N	NO	30	±20	83	1.6	2.3	3.6	2670	1480	158
WMQ040N03LG2	PDFN3*3-8L	Single	N	NO	30	±20	36	1.6	4	6.2	1390	680	53
WMB040N03LG2	PDFN5*6-8L	Single	N	NO	30	±20	58	1.6	4	6.2	1390	680	53
WMB042DN03LG2	PDFN5*6-8L	Dual	N	NO	30	±20	50	1.6	4.2	6.5	1390	680	53
WMB042DN03LG2	PDFN5*6-8L	Dual	N	NO	30	±20	45	1.6	5.5	9	1100	430	60
WMQ052N03LG2	PDFN3*3-8L	Single	N	NO	30	±20	32	1.6	5.2	9	1100	435	57
WMB052N03LG2	PDFN5*6-8L	Single	N	NO	30	±20	50	1.6	5.2	8.8	1100	435	57
WMQ30N03T2	PDFN3*3-8L	Single	N	NO	30	±20	30	1.6	6.3	9.5	770	398	62
WMB52N03T2	PDFN5*6-8L	Single	N	NO	30	±20	52	1.6	6.3	9	850	400	60
WMQ080N03LG2	PDFN3*3-8L	Single	N	NO	30	±20	28	1.6	8	12	690	335	32
WMB080N03LG2	PDFN5*6-8L	Single	N	NO	30	±20	42	1.6	8	12	690	335	32
WMQ098N03LG2	PDFN3*3-8L	Single	N	NO	30	±20	26	1.6	9.8	15.6	570	250	27.5
WMB098N03LG2	PDFN5*6-8L	Single	N	NO	30	±20	38	1.6	9.8	15.6	570	250	27.5
WMB018N04LG2	PDFN5*6-8L	Single	N	NO	40	±20	140	1.7	1.8	2.6	3570	1050	115
WMS032N04LG2	SOP-8L	Single	N	NO	40	±20	22	1.7	3.2	5.2	2705	960	55
WMQ032N04LG2	PDFN3*3-8L	Single	N	NO	40	±20	70	1.7	3.4	5.5	2705	960	55
WMB032N04LG2	PDFN5*6-8L	Single	N	NO	40	±20	90	1.7	3.2	5.2	2705	960	55
WMQ050N04LG2	PDFN3*3-8L	Single	N	NO	40	±20	60	1.7	5	8	2111	708	50
WMQ090N04LG2	PDFN3*3-8L	Single	N	NO	40	±20	40	1.7	9	12.5	788	305	62
WMB090N04LG2	PDFN5*6-8L	Single	N	NO	40	±20	50	1.7	8.5	12	788	305	62
WMS090N04LG2	SOP-8L	Single	N	NO	40	±20	14	1.6	9	15	788	305	62
WMB025N06LG2	PDFN5*6-8L	Single	N	NO	60	±20	160	1.7	2.8	3.8	4390	1250	65
WMK025N06LG2	TO-220	Single	N	NO	60	±20	200	1.7	2.8	3.8	6105	1128	75
WMB025N06HG2	PDFN5*6-8L	Single	N	NO	60	±20	160	2.8	2.8	/	4683	1192	69
WML025N06HG2	TO-220F	Single	N	NO	60	±20	180	2.8	2.8	/	4683	1192	69
WMK025N06HG2	TO-220	Single	N	NO	60	±20	200	3	2.8	/	4683	1192	69
WMB85N06T2	PDFN5*6-8L	Single	N	NO	60	±20	85	1.7	3.6	5.4	3550	1226	78
WMO036N06LG2	TO-252	Single	N	NO	60	±20	82	1.7	4.5	6	3550	1126	80
WMS082N06LG2	SOP-8L	Single	N	NO	60	±20	15	1.7	9	13	1650	455	13
WMB082N06LG2	PDFN5*6-8L	Single	N	NO	60	±20	52	1.7	8.2	12	1650	455	13.5
WMS091N06LG2	SOP-8L	Single	N	NO	60	±20	14	1.7	9.1	13	1625	412	2.9
WMQ091N06LG2	PDFN3*3-8L	Single	N	NO	60	±20	45	1.7	9.1	13	1625	412	2.9
WMB091N06LG2	PDFN5*6-8L	Single	N	NO	60	±20	62	1.7	9.1	13	1625	412	2.9
WMS098N06LG2	SOP-8L	Single	N	NO	60	±20	13	1.7	9.8	14.5	1055	430	22
WMQ098N06LG2	PDFN3*3-8L	Single	N	NO	60	±20	42	1.7	9.8	14.5	1055	430	22
WMB098N06LG2	PDFN5*6-8L	Single	N	NO	60	±20	57	1.7	9.8	14.5	1055	430	22
WMS098DN06LG2	SOP-8L	Dual	N	NO	60	±20	13	1.7	9.8	15	1055	430	22
WMS048NV6LG2	SOP-8L	Single	N	NO	65	±20	17.5	1.7	5.5	7.6	1900	785	50
WMQ048NV6LG2	PDFN3*3-8L	Single	N	NO	65	±20	60	1.7	5.5	7.6	1995	785	51
WMB048NV6LG2	PDFN5*6-8L	Single	N	NO	65	±20	95	1.7	4.8	7	1995	785	51
WMQ048NV6HG2	PDFN3*3-8L	Single	N	NO	65	±20	60	3	5	/	2068	934	45
WMS048NV6HG2	SOP-8L	Single	N	NO	65	±20	17.5	3	5	/	2068	934	45
WMB048NV6HG2	PDFN5*6-8L	Single	N	NO	65	±20	95	3	5	/	2068	934	45
WMM050NV6HG2	TO-263	Single	N	NO	65	±20	150	3	5	/	2368	1034	45
WMS090NV6LG2	SOP-8L	Single	N	NO	65	±20	14	1.7	9	13	1223	490	22
WMQ090NV6LG2	PDFN3*3-8L	Single	N	NO	65	±20	45	1.7	9	13	1223	490	22
WMB090NV6LG2	PDFN5*6-8L	Single	N	NO	65	±20	62	1.7	9	13	1223	490	22
WMB036N08HG3	PDFN5*6-8L	Single	N	NO	80	±20	120	3	3.6	/	4520	681	37
WMB037N08HG2	PDFN5*6-8L	Single	N	NO	80	±20	135	3	3.7	/	3190	1498	94
WMM037N08HG2	TO-263	Single	N	NO	80	±20	192	3	3.8	/	3648	1280	76
WMK037N08HG2	TO-220	Single	N	NO	80	±20	190	3	3.9	/	3648	1280	76
WMQ060N08LG2	PDFN3*3-8L	Single	N	NO	80	±20	58	1.7	6	9.2	2165	545	18
WMB060N08LG2	PDFN5*6-8L	Single	N	NO	80	±20	98	1.7	6	8.2	2155	482	23
WMB060N08HG2	PDFN5*6-8L	Single	N	NO	80	±20	82	3	6	/	2422	428	15
WMK060N08HG2	TO-220	Single	N	NO	80	±20	95	3	6	/	2450	500	20
WMO060N08HG2	TO-252	Single	N	NO	80	±20	88	3	6	/	2422	428	15
WMM060N08HG2	TO-263	Single	N	NO	80	±20	95	3	6	/	2450	500	20
WMS18N08T2	SOP-8L	Single	N	NO	80	±20	17.5	1.7	7	9	3045	832	38
WMB48N08T2	PDFN5*6-8L	Single	N	NO	80	±20	48	1.7	6.5	9	3045	812	38
WMK028N10HG2	TO-220	Single	N	NO	100	±20	245	3	2.8	/	7450	145	32
WMM028N10HG2	TO-263	Single	N	NO	100	±20	245	3	2.8	/	7450	145	32
WMB129N10T2	PDFN5*6-8L	Single	N	NO	100	±20	129	1.7	4.2	6	3875	920	41
WMB128N10T2	PDFN5*6-8L	Single	N	NO	100	±20	128	3	4.2	/	3745	934	32
WMM166N10T2	TO-263	Single	N	NO	100	±20	166	3	4.2	/	3642	879	41
WMK043N10LG2	TO-220	Single	N	NO	100	±20	166	1.7	4.3	6	3875	920	41
WMK166N10T2	TO-220	Single	N	NO	100	±20	166	3	4.3	/	3629	850	31
WMB055N10HG2	PDFN5*6-8L	Single	N	NO	100	±20	97	3	5.5	/	2710	511	33
WMK055N10HG2	TO-220	Single	N	NO	100	±20	120	3	5.5	/	2710	511	33
WMM055N10HG2	TO-263	Single	N	NO	100	±20	120	3	5.5	/	2710	511	33
WMB060N10LG2	PDFN5*6-8L	Single	N	NO	100	±20	97	1.7	6	8	2960	580	15
WMK060N10LG2	TO-220	Single	N	NO	100	±20	120	1.6	6	8	2960	580	15
WMB080N10LG2	PDFN5*6-8L	Single	N	NO	100	±20	74	1.8	8	11	1890	352	9.7
WMK080N10LG2	TO-220	Single	N	NO	100	±20	82	1.8	8	11	1890	352	9.7
WMS080N10LG2	SOP-8L	Single	N	NO	100	±20	15	1.8	9.2	12	1915	350	9.2
WMB080N10HG2	PDFN5*6-8L	Single	N	NO	100	±20	74	3	8	/	2250	370	8.5
WMO080N10HG2	TO-252	Single	N	NO	100	±20	85	3	8	/	2250	370	8.5
WML080N10HG2	TO-220F	Single	N	NO	100	±20	42	3	8.6	/	1890	352	7.5
WMP73N10T2	TO-251	Single	N	NO	100	±20	73	1.7	8.5	11	2860	451	14
WMO73N10T2	TO-252	Single	N	NO	100	±20	73	1.7	8.5	11	2950	430	12
WMS099N10LG2	SOP-8L	Single	N	NO	100	±20	13	1.8	9.9	13.5	1620	300	5.8
WMQ099N10LG2	PDFN3*3-8L	Single	N	NO	100	±20	47	1.8	9.9	13	1620	300	5.5
WMB099N10LG2	PDFN5*6-8L	Single	N	NO	100	±20	62	1.8	9.9	13	1580	300	5.8
WMK099N10LG2	TO-220	Single	N	NO	100	±20	65	1.8	9.9	13	1620	300	5.5
WMP099N10LG2	TO-251	Single	N	NO	100	±20	63	1.8	9.9	13	1620	300	5.8
WMB34N10T2	PDFN5*6-8L	Single	N	NO	100	±20	34	1.8	11.5	15	2197	325	10
WMK75N10T2	TO-220	Single	N	NO	100	±20	75	1.8	11.5	15	2150	320	7.2
WMO60N10T2	TO-252	Single	N	NO	100	±20	60	1.8	11.5	15	2120	330	7.2
WMS12N10T2	SOP-8L	Single	N	NO	100	±20	11.5	1.8	12	15.5	2220	350	12
WMS119N10LG2	SOP-8L	Single	N	NO	100	±20	11.5	1.8	13	17.5	1170	210	6.5
WMQ119N10LG2	PDFN3*3-8L	Single	N	NO	100	±20	42	1.8	13	17.5	1170	210	6.5
WMB119N10LG2	PDFN5*6-8L	Single	N	NO	100	±20	50	1.8	12.9	17.3	1170	210	6.5
WMP119N10LG2	TO-251	Single	N	NO	100	±20	55	1.8	13	17.5	1170	210	6.5
WMS175N10LG2	SOP-8L	Single	N	NO	100	±20	10	1.8	17.5	26	880	182	7
WMQ175N10LG2	PDFN3*3-8L	Single	N	NO	100	±20	30	1.8	17.5	26	838	149	5
WMB175N10LG2	PDFN5*6-8L	Single	N	NO	100	±20	44	1.8	17.5	26	880	182	7
WMK049N12HG2	TO-220	Single	N	NO	120	±20	170	3	4.9	/	5150	595	19
WMM049N12HG2	TO-263	Single	N	NO	120	±20	170	3	4.9	/	5150	595	19
WMK058N12HG2	TO-220	Single	N	NO	120	±20	160	3	5.8	/	4315	521	11
WMM058N12HG2	TO-263	Single	N	NO	120	±20	160	3	5.8	/	4315	521	11
WMB072N12LG2	PDFN5*6-8L	Single	N	NO	120	±20	90	2	7.2	10	3780	985	20
WMK072N12LG2	TO-220	Single	N	NO	120	±20	125	2	7.2	10	3750	985	21
WMB072N12HG2	PDFN5*6-8L	Single	N	NO	120	±20	124	3	7.2	/	3612	975	19
WMK072N12HG2	TO-220	Single	N	NO	120	±20	124	3	7.2	/	3612	975	19
WMB125N12LG2	PDFN5*6-8L	Single	N	NO	120	±20	61	2	12.5	17	2350	285	15
WMK125N12LG2	TO-220	Single	N	NO	120	±20	74	2	12.5	17	2075	235	9
WMK161N15T2	TO-220	Single	N	NO	150	±20	161	3	6	/	6220	480	11
WMM161N15T2	TO-263	Single	N	NO	150	±20	161	3	6	/	6220	480	11
WML071N15HG2	TO-220F	Single	N	NO	150	±20	120	3	7.1	/	5470	389	13
WMK071N15HG2	TO-220	Single	N	NO	150	±20	135	3	7.1	/	5470	389	13
WMM071N15HG2	TO-263	Single	N	NO	150	±20	135	3	7.1	/	5470	389	13
WMB115N15HG2	PDFN5*6-8L	Single	N	NO	150	±20	74	3	11.5	/	3420	262	9.2
WMK115N15HG2	TO-220	Single	N	NO	150	±20	90	3	11.5	/	3420	262	9.2
WMM115N15HG2	TO-263	Single	N	NO	150	±20	90	3	11.5	/	3420	262	9.2
WMB198N15HG2	PDFN5*6-8L	Single	N	NO	150	±20	50	3	19.8	/	2150	145	12
WMK198N15HG2	TO-220	Single	N	NO	150	±20	59	3	19.8	/	2150	145	12
WMO28N15T2	TO-252	Single	N	NO	150	±20	28	3	48	/	512	75	11
WMS06N15T2	SOP-8L	Single	N	NO	150	±20	5.8	3	50	/	518	75	13
WMO20N15T2	TO-252	Single	N	NO	150	±20	20	2	70	88	639	41	6
WMS05N15T2	SOP-8L	Single	N	NO	150	±20	4.5	3	75	/	600	52	15
WMB340N20HG2	PDFN5*6-8L	Single	N	NO	200	±20	40	3	34	/	1588	120	8
WMK340N20HG2	TO-220	Single	N	NO	200	±20	50	3	34	/	1588	120	8
WMM340N20HG2	TO-263	Single	N	NO	200	±20	50	3	34	/	1588	120	8
WMO18N20T2	TO-252	Single	N	NO	200	±20	18	2	130	150	514	26	6.5
WML15N25T2	TO-220F	Single	N	NO	250	±20	15	2	238	270	496	21	6.2
WMO15N25T2	TO-252	Single	N	NO	250	±20	15	2	238	270	496	21	6.2

下一条：WAYON维安代理商针对PC电源推出MOSFET细分产品返回

新闻中心原装畅销·品牌齐全·海量型号·库存充足

新闻中心

公司新闻

行业新闻

产品知识

联系我们

深圳京柏微科技有限公司

公司新闻

发力新基建，Wayon维安半导体推出国内16.5mΩ超低内阻超结MOSFET WMJ120N60CM

更多 >>联系方式

更多 >>产品中心

官方微信

18124163678

服务热线（早8:00-凌晨1:00）

新闻中心 原装畅销·品牌齐全·海量型号·库存充足

新闻中心

公司新闻

行业新闻

产品知识

联系我们

深圳京柏微科技有限公司

公司新闻

发力新基建，Wayon维安半导体推出国内16.5mΩ超低内阻超结MOSFET WMJ120N60CM

更多 >>联系方式

更多 >>产品中心

官方微信

18124163678

服务热线（早8:00-凌晨1:00）

新闻中心原装畅销·品牌齐全·海量型号·库存充足
