Wayon维安代理保护器件ESD&EOS Array
时间：2022-05-06 发布人：京柏微 点击量：

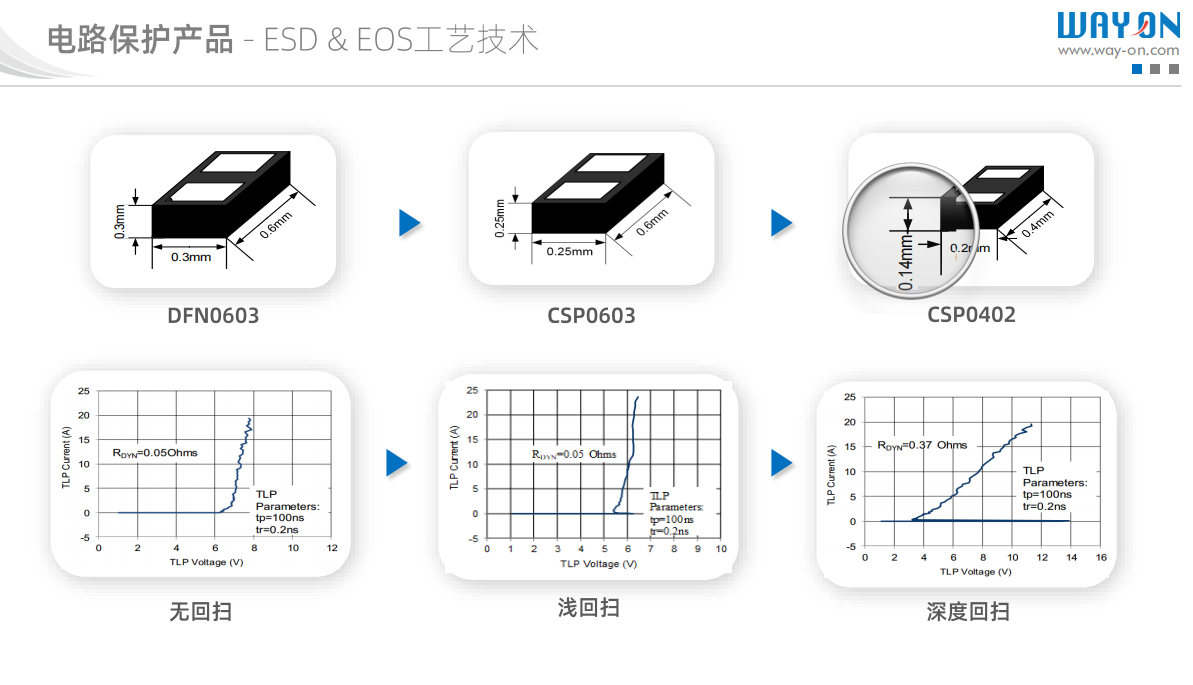

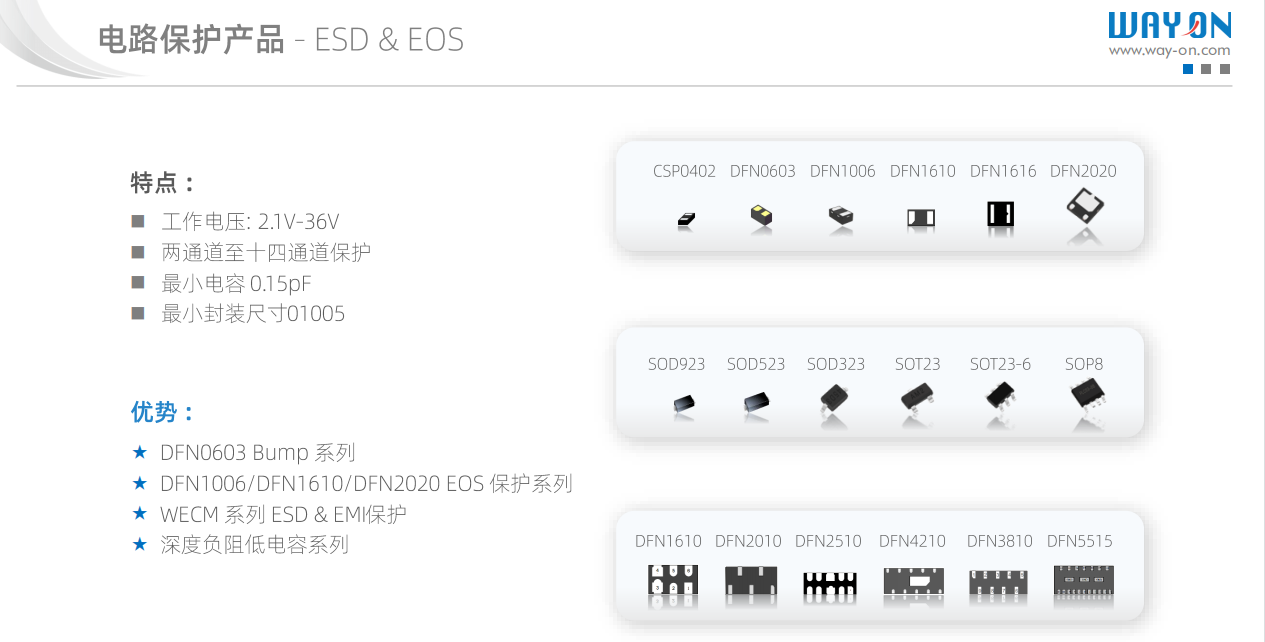

Wayon维安代理ESD是由多个TVS晶粒或二极管采用不同的布局设计成具有特定功能的单路或多路静电保护器件。ESD工作电压比较低，一般是根据IC的工作电压设计的，比如2.8V、3.3V、5V、12V、15V、18V、24V、36V等等。小体积，能够节约PCB空间。低结电容，最低可达到零点几皮法，非常适合高频信号传输的通信端口中。封装形式多样（SOD-323、SOD-523、SOT-23、SOT-553、SOT-563、SO-8、DFN1006-2L、DFN0603-2L、DFN0603等等），能够满足不同应用需求。
●Wayon维安ESD静电二极管的特性
*低电容，低至0.1pF
*响应时间快:一般小于1.0ps;
*体积小，器件小型化，节省PCB空间;
*工作电压可根据IC的工作电压设计，如2.8V、3.3V、5V、8V、12V、15V等;
*灵活性高，可根据应用要求设计电容、包装形式、耐浪涌容量等参数;
●Wayon维安ESD静电二极管选择指南
①ESD静电二极管的截止电压高于该电路的最高工作电压;
②峰值电流IPP和最大箝位电压VC的选择应基于线路上可能出现的最大浪涌电流。需要注意的是，此时VC应小于被保护芯片所能承受的最大峰值电压;
③用于信号传输电路保护时，要注意传输信号的频率或传输速率;
④根据电路设计布局和保护线路的数量，选择合适的封装。ESD封装的大小在一定程度上可以反映器件的保护水平。通常，封装尺寸越大，ESD芯片的面积越大，保护等级越高，反之亦然。
| Part No. | VRWM（V） | VBR（V）Min | C j （ P F ） | Ipp（A） | Vc（V）@Ipp | IR （μA）Max | PPP（W） | MPQ(pcs) | Package | Data sheet |
|---|
| WE3.3MF-BH | 3.3 | 3.7 | 20(TYP) 25(MAX) | 11 | 8.3(TYP) 11(MAX) | 0.5 | 121 | 10000 | DFN1006-3L |  |
| WE05MGC | 5 | 6 | 0.35(TYP) 0.45(MAX) | 3 | 10.5(TYP) 12(MAX) | 0.2 | 36 | 10000 | DFN1006-3L | |
| WE05MUCA | 5 | 6 | 0.7(TYP) 1.0(MAX) | 5.5 | 10.5(TYP) 12(MAX) | 0.5 | 66 | 10000 | DFN1006-3L | |
| WE05MUC | 5 | 6 | 0.8 | 5 | 12 | 1 | 60 | 10000 | DFN1006-3L | |
| WE05MF-BH | 5 | 5.6 | 20 | 8 | 10 | 0.1 | 80 | 10000 | DFN1006-3L | |
| WS03-2RUCB | 3.3 | 4 | 0.35 | 8 | 14(TYP) 18(MAX) | 0.2 | 128 | 3000 | DFN1610-6L | |
| WS05-2R2P | 5 | 5.6 | 0.8 | 5 | 15 | 0.5 | 100 | 3000 | DFN1610-6L | |
| WS05-2R2PL | 5 | 6 | 0.5 | 4 | 10.5(TYP) 12(MAX) | 0.5 | 48 | 3000 | DFN1610-6L | |
| WS4.5P4N3-BW | 4.5 | 4.6 | 430(TYP) 600(MAX) | 300 | 11.5(TYP) 15(MAX) | 0.5 | 4500 | 3000 | DFN2020-3L | |
| WS4.5P4N3 | 4.5 | 5 | 3000 | 260 | 15 | 0.5 | 3500 | 3000 | DFN2020-3L | |
| WS05P4N3P | 5 | 5.6 | 3500 | 300 | 18 | 0.5 | 5400 | 3000 | DFN2020-3L | |
| WS07P4N3 | 7 | 7.7 | 1500 | 240 | 15(TYP) 18(MAX) | 0.2 | 3600 | 3000 | DFN2020-3L | |
| WS10P4N3 | 10 | 11 | 1700(TYP) 2000(MAX) | 260 | 19(TYP) 21(MAX) | 0.2 | 5460 | 3000 | DFN2020-3L | |
| WS12P4N3 | 12 | 13.3 | 800 | 130 | 22(TYP) 25(MAX) | 0.5 | 3250 | 3000 | DFN2020-3L | |
| WS12P4N3U | 12 | 13.3 | 1000 | 200 | 28 | 0.5 | 5600 | 3000 | DFN2020-3L | |
| WS15P4N3A | 15 | 16.7 | 1700 | 200 | 30 | 0.2 | 6000 | 3000 | DFN2020-3L | |
| WS15P4N3U | 15 | 16.7 | 1500 | 170 | 33 | 0.5 | 5610 | 3000 | DFN2020-3L | |
| WS18P4N3A | 18 | 20 | 1500 | 160 | 36 | 0.2 | 5760 | 3000 | DFN2020-3L | |
| WS18P4N3U | 18 | 20 | 800 | 150 | 38 | 0.5 | 5700 | 3000 | DFN2020-3L | |
| WS20P4N3 | 20 | 21 | 890(TYP) 1200(MAX) | 150 | 33(TYP) 36(MAX) | 0.5 | 5400 | 3000 | DFN2020-3L | |
| WS22P4N3P | 22 | 23.5 | 1000 | 200 | 33 | 0.5 | 6600 | 3000 | DFN2020-3L | |
| WS24P4N3 | 24 | 25 | 1000(MAX) | 200 | 32(TYP) 35(MAX) | 0.5 | 7000 | 3000 | DFN2020-3L | |
| WS30P4N3H | 30 | 30.5 | 600(TYP) 720(MAX) | 200 | 34.5(TYP) 37(MAX) | 0.5 | 7400 | 3000 | DFN2020-3L | |
| WS3.3-4R2P | 3.3 | 3.7 | 0.8 | 5.5 | 13.5 | 0.5 | 75 | 3000 | DFN2510-10L | |
| WS05-4R2PJ | 5 | 6 | 0.45 | 3 | 13 | 0.2 | 39 | 3000 | DFN2510-10L | |
| WS5414KC | 5 | 6 | 0.65(TYP) 0.85(MAX) | 4 | 8(TYP) 10(MAX) | 0.5 | 40 | 3000 | DFN2510-10L | |
| WS05-4R2P | 5 | 6 | 0.8 | 5 | 15 | 0.5 | 100 | 3000 | DFN2510-10L | |
| WS05-4R3P | 5 | 6 | 0.8 | 4.5 | 12 | 0.2 | 54 | 3000 | DFN2510-10L | |
| WS03-4TP | 3.3 | 3.7 | 0.55(TYP) 0.65(MAX) | 8 | 3.5(TYP) 4(MAX) | 0.5 | 32 | 3000 | DFN2510-10L | |
| WE14001C | 60 | 72 | 6.6(TYP) 10(MAX) | 4.5 | 104(TYP) 106(MAX) | 0.5 | 477 | 3000 | DFN2510-10L | |
| WS2.5-4R1N | 2.5 | 3 | 2.7(TYP) 4(MAX) | 28 | 14(TYP) 18(MAX) | 0.5 | 500 | 3000 | DFN2626-10L | |
| WS3.3-2R1N | 3.3 | 3.5 | 10 | 80 | 25 | 0.2 | 2000 | 3000 | DFN2626-10L | |
| WS3.3-4R1N | 3.3 | 3.5 | 5 | 25 | 18 | 5 | 450 | 3000 | DFN2626-10L | |
| WS2.5-4R7NS | 2.5 | 2.7 | 3.6(TYP) 5(MAX) | 40 | 21.5(MAX) | 0.5 | 860 | 3000 | DFN3020-10L | |
| WS3.3-4R7NS | 3.3 | 3.5 | 3.6(TYP) 5(MAX) | 40 | 21.5(MAX) | 0.5 | 800 | 3000 | DFN3020-10L | |
| WE3.3-8R2P | 3.3 | 3.7 | 0.8 | 6 | 18 | 0.5 | 100 | 3000 | DFN3810-9L | |
| WE03-6R1N | 3.3/5 | 3.7/5.5 | 0.56(TYP) 0.8(MAX) | 5 | 8.5(TYP) 10(MAX) | 0.5 | 50 | 3000 | DFN4120-10L | |
| WE05-6R1N | 5 | 6 | 1 | 4 | 12 | 0.5 | 48 | 3000 | DFN4120-10L | |
| WS05-4RM | 5 | 6 | 3 | 8 | 15 | 0.5 | 120 | 3000 | MSOP10 | |
| WS2.8-4LVUB | 2.8 | 3 | 2 | 22 | 25 | 1 | 550 | 2500 | SOP8 | |
| WS05RXLC | 5 | 6 | 3.5 | 23 | 15 | 0.2 | 300 | 3000 | SOT-143 | |
| WE05R | 5 | 6 | 1 | 6.5 | 17.6 | 1 | 100 | 3000 | SOT-143 | |
| WS70RH | 70 | 80 | 10 | 25 | 14 | 2 | 350 | 3000 | SOT-143 | |
| WS03M2T-B | 3.3 | 4 | 120 | 20 | 15 | 1 | 350 | 3000 | SOT-23 | |
| WS03M2T | 3.3 | 4 | 240 | 25 | 14 | 1 | 350 | 3000 | SOT-23 | |
| WE05M2UC | 5 | 6 | 0.8 | 5 | 15 | 0.5 | 75 | 3000 | SOT-23 | |
| WE05MLC | 5 | 6 | 1 | / | / | 1 | 100 | 3000 | SOT-23 | |
| WE05MLC-B | 5 | 6 | 3.5 | 2 | 13 | 0.5 | 30 | 3000 | SOT-23 | |
| WS05M2T-B | 5 | 6 | 90 | 18 | 16.7 | 1 | 450 | 3000 | SOT-23 | |
| WS05M2T-BH | 5 | 5.6 | 100 | 43 | 15 | 0.5 | 645 | 3000 | SOT-23 | |
| WS05M2T | 5 | 6 | 180 | 18 | 16.7 | 1 | 300 | 3000 | SOT-23 | |
| WS08M2T-BH | 8 | 8.5 | 50 | 35 | 22 | 0.5 | 770 | 3000 | SOT-23 | |
| WS1219PT | 12 | 13.3 | 23(TYP) 40(MAX) | 8 | 23(TYP) 25(MAX) | 0.5 | 200 | 3000 | SOT-23 | |
| WS12M2T-B | 12 | 13.3 | 36 | 12 | 25 | 1 | 350 | 3000 | SOT-23 | |
| WS12M2T-BA | 12 | 13.3 | 56(TYP) 70(MAX) | 20 | 22.5(TYP) 25(MAX) | 0.5 | 500 | 3000 | SOT-23 | |
| WS12M2T | 12 | 13.3 | 60 | 12 | 25 | 1 | 300 | 3000 | SOT-23 | |
| WS12M2TH | 12 | 13.3 | 110(TYP) 150(MAX) | 20 | 22.5(TYP) 25(MAX) | 0.5 | 500 | 3000 | SOT-23 | |
| WS15M2T-B | 15 | 16.7 | 30 | 10 | 35 | 1 | 350 | 3000 | SOT-23 | |
| WS15M2T | 15 | 16.7 | 55 | 10 | 35 | 1 | 350 | 3000 | SOT-23 | |
| WS24M2T-BH | 24 | 26.5 | 26.5(TYP)35(MAX) | 8 | 42 | 0.5 | 336 | 3000 | SOT-23 | |
| WS24M2T | 24 | 26.7 | 36 | 5 | 55 | 1 | 300 | 3000 | SOT-23 | |
| WS36M2T-BH | 36 | 39 | 20 | 4 | 46.3 | 0.2 | 420 | 3000 | SOT-23 | |
| WS36M2T | 36 | 40 | 25(TYP) 40(MAX) | 5 | 92(TYP) 95(MAX) | 1 | 475 | 3000 | SOT-23 | |
| WS1236M | 36 / 12 | 39 / 13.3 | 25 | 13 | 25 | 0.5 | 325 | 3000 | SOT-23 | |
| WS712M | 7.0/12.0 | 7.5/13.3 | 75 | 5.0/12.0 | 10.0/26.0 | 1 | 400 | 3000 | SOT-23 | |
| WS03-4RULT5 | 3.3 | 3.5 | 3(TYP) 5(MAX) | 28 | 11.5(TYP) 13(MAX) | 0.2 | 364 | 3000 | SOT-23-5L | |
| WE05-4HT5 | 5 | 5.5 | 15(TYP) 20(MAX) | 10 | 8(TYP) 10(MAX) | 0.2 | 100 | 3000 | SOT-23-5L | |
| WS03-4R2S | 3.3 | 3.7 | 2 | 14 | 16 | 0.5 | 250 | 3000 | SOT-23-6L | |
| WE05-5RVA | 5 | 6 | 0.65(TYP) 1(MAX) | 3 | 11.5(TYP) 14(MAX) | 0.5 | 42 | 3000 | SOT-23-6L | |
| WE4414K6 | 5 | 6 | 0.55(TYP) 0.7(MAX) | 4 | 11(TYP) 13(MAX) | 0.5 | 52 | 3000 | SOT-23-6L | |
| WE05-4RVLC | 5 | 6 | 1.5 | 4 | 15 | 0.5 | 60 | 3000 | SOT-23-6L | |
| WE05-4RVLCH | 5 | 6 | 2 | 7 | 15 | 0.5 | 105 | 3000 | SOT-23-6L | |
| WS05-4R | 5 | 6 | 2 | 15 | 23 | 0.5 | 350 | 3000 | SOT-23-6L | |
| WS05-4RUL | 5 | 6 | 5 | 24 | 18 | 5 | 500 | 3000 | SOT-23-6L | |
| WS05-4R5S | 5 | 6 | 5 | 35 | 25 | 1 | 900 | 3000 | SOT-23-6L | |
| WS05MS | 5 | 6 | 100 | 14 | 17 | 1 | 250 | 3000 | SOT-23-6L | |
